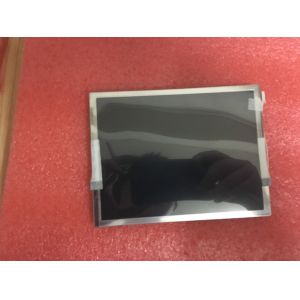

LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01

FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers

    Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers
    • Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers
    • Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers
    • Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers
    • Buy cheap LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01 from wholesalers

    LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01

    Ask Lasest Price
    Brand Name : LG
    Model Number : LB064V02-TD01
    Certification : Rohs,CE,FCC
    Price : Negotiation
    Payment Terms : T/T,W, Western Union, MoneyGram
    Supply Ability : 3000pcs per week
    Delivery Time : 4-5 working day
    • Product Details
    • Company Profile

    LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01

    Brand
    Diagonal Size
    Pixel Format
    Active Area
    Bezel Area
    Luminance
    View Direction
    Viewing Angle
    Support Color
    Weight
    Frame Rate
    LG.Philips LCD
    6.4 inch
    640(RGB)×480 [VGA]
    130.56(H)×97.92(V) mm
    133.8(H)×101.1(V) mm
    250 cd/m² (Typ.)
    6 o'clock
    65/65/50/60 (Typ.)(CR≥10)
    262K 45% (CIE1931)
    130/140g (Typ./Max.)
    60Hz
    Model
    Type
    Configuration
    Outline Dim.
    Treatment
    Contrast Ratio
    Response Time
    Operating Mode
    Light Source
    Designed For
    Touch Panel
    LB064V02-TD01
    a-Si TFT-LCD , LCM
    RGB Vertical Stripe
    145.5(H)×111.5(V) mm
    Antiglare, Hard coating (3H)
    400:1 (Typ.) (TM)
    10/15 (Typ.)(Tr/Td)
    TN, Normally White, Transmissive
    CCFL [1 pcs] , 20K hours , W/O Driver
    Without
    Interface Type30 pins CMOS/TTL (1 ch, 6-bit) , Connector
    Power Supply3.3V (Typ.)(VCC)
    EnvironmentOperating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

    LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01LG 6.4" High Brightness Lcd Display , 640*480 Pixels Industrial Computer Monitor LB064V02-TD01


    LG.Philips LCD Co., Ltd. (hereafter called LG.Philips LCD) LB064V02-TD01 (Alias: LB064V02 (TD)(01)) is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Antiglare Surface, Landscape type , EOL: Dec. 2012. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2007 and last shippment on Q2, 2013, Now this model is discontinued. We inputted this model's specification on Mar 16 2013 for the first time, and the latest update on Aug 23 2013. If you want to embed LB064V02-TD01 LCM in your future product, einklcd strongly recommend that you should contact with LG.Philips LCD or it's distributor to learn lateast production and specification detail. The LB064V02-TD01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
